Description

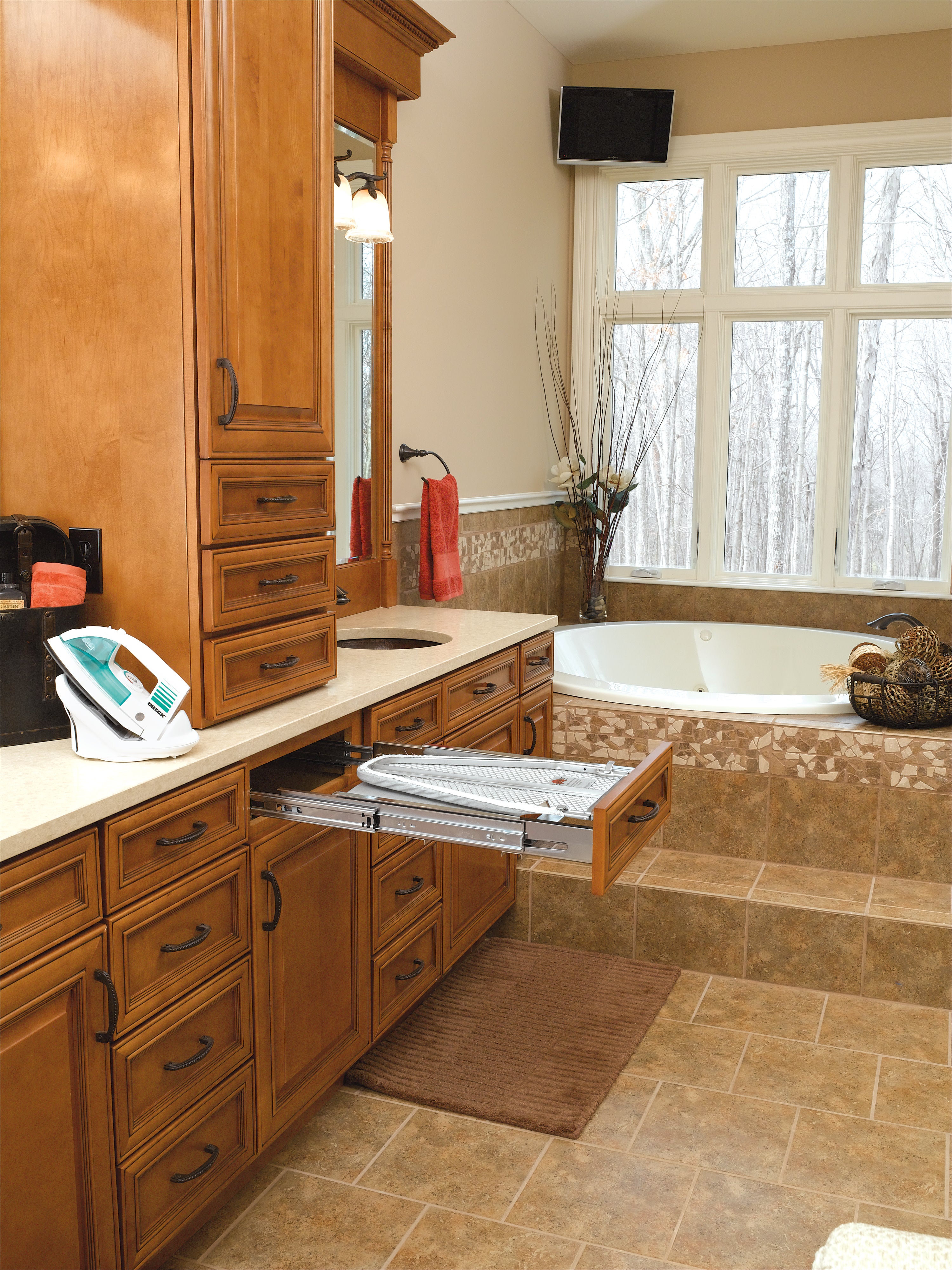

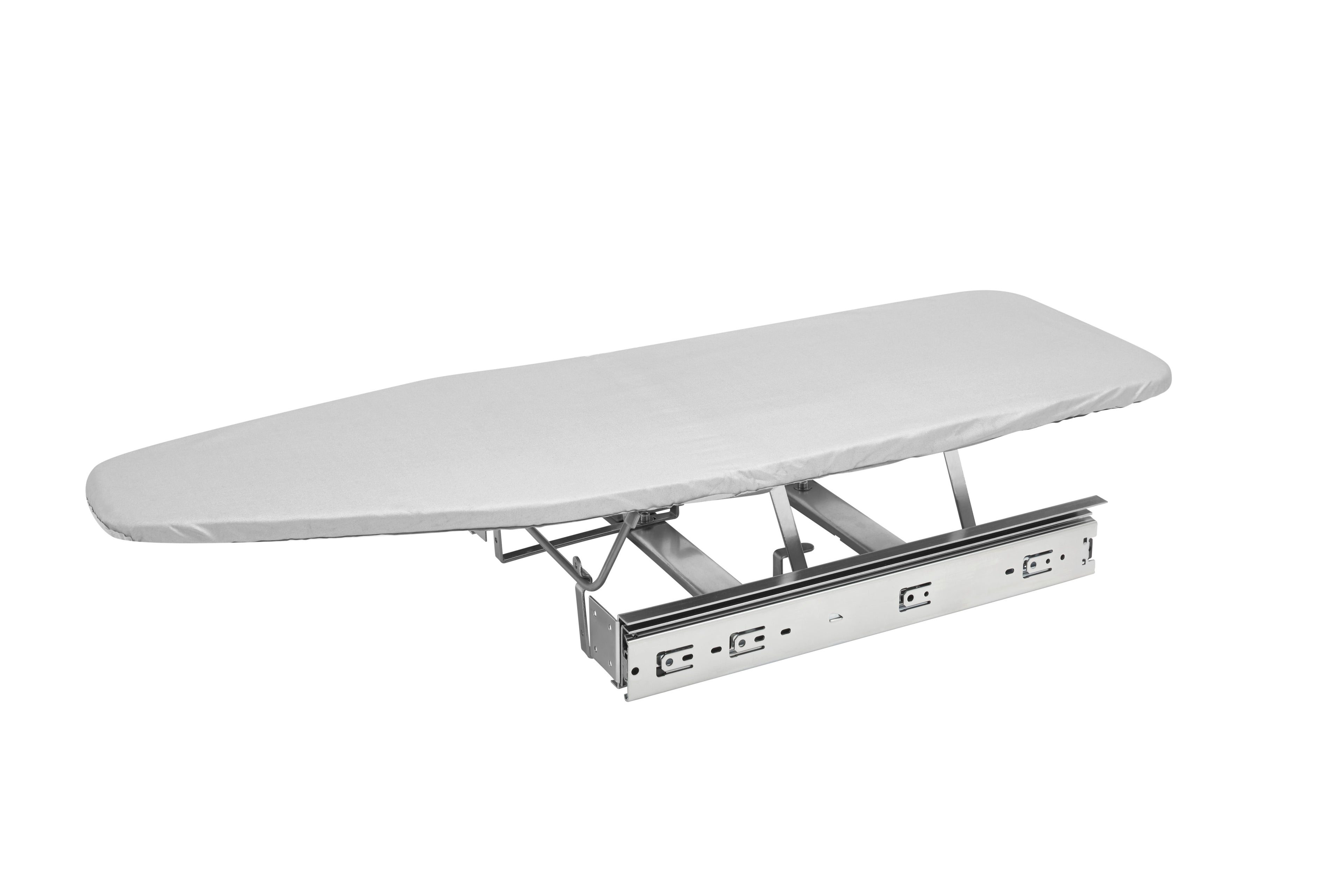

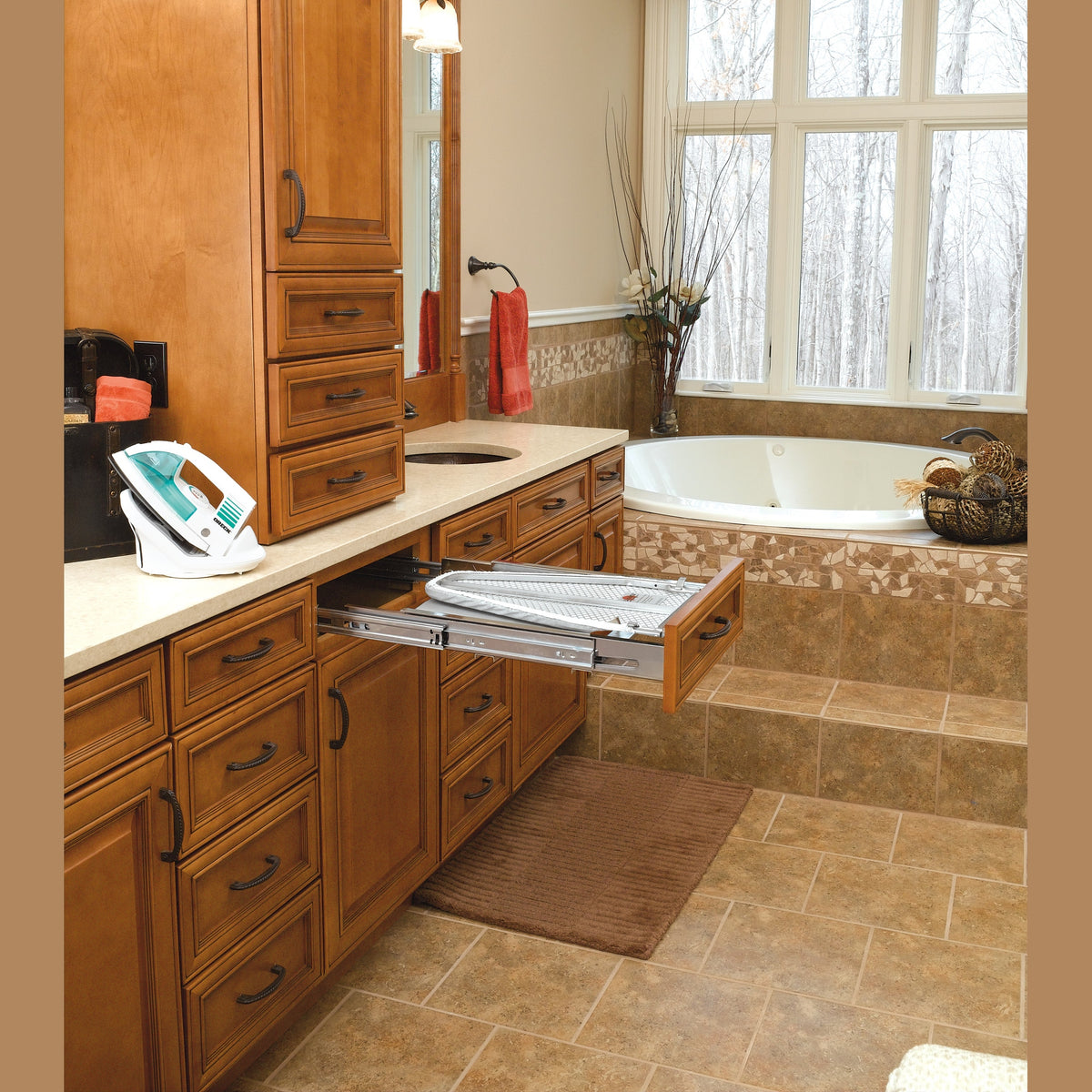

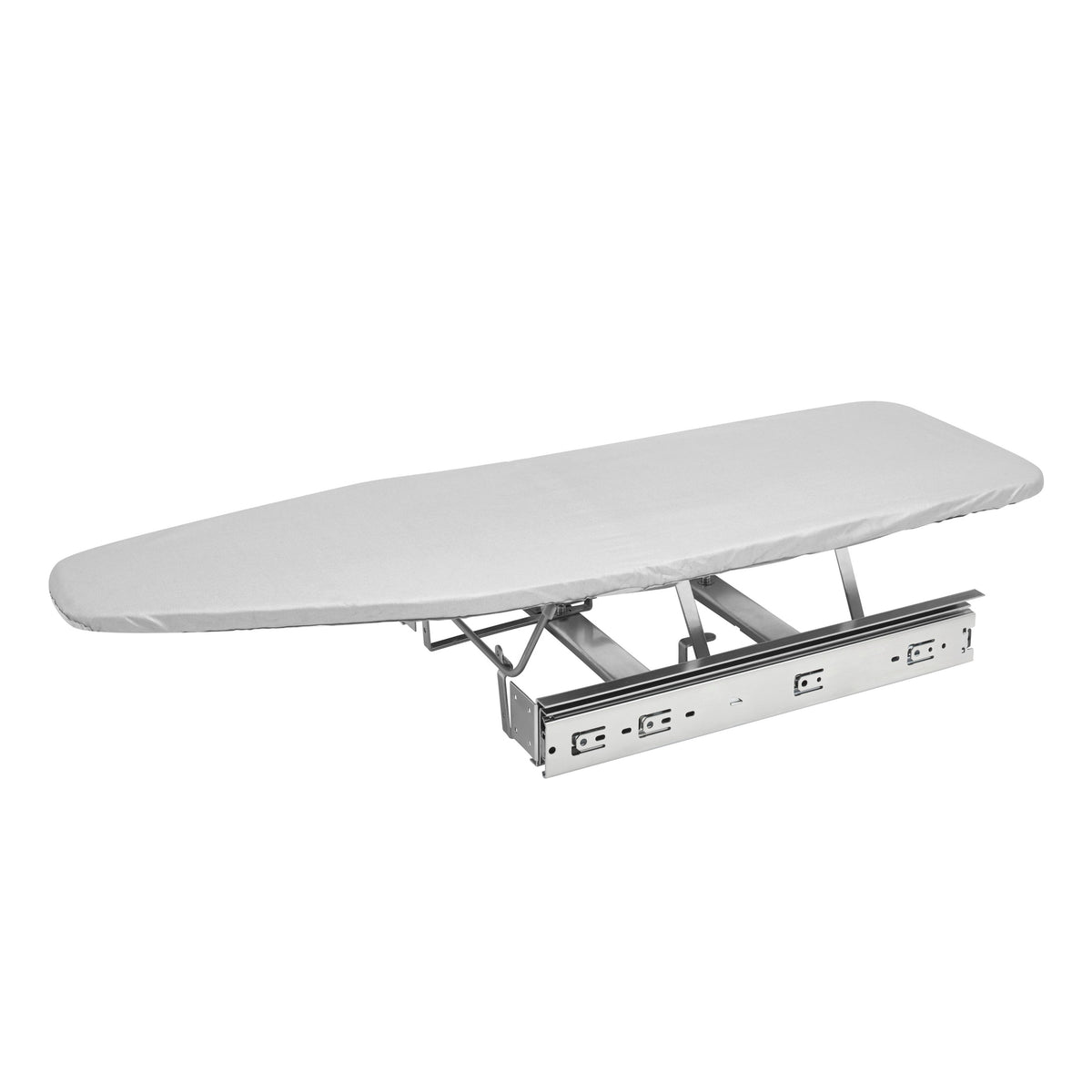

Rev-A-Shelf® has ironed out the inconvenience of storing and setting up that bulky ironing board with the introduction of its VIB Series. The uniquely designed expandable frame mounts easily in a vanity drawer between cabinet sides from 14-1/4" to 21" wide and the fixed brackets allow for easy mounting of all standard drawer fronts. It features a chrome finish and unique ball-bearing slide system that provides sufficient over travel for maximum utilization. Simply open until the gravity lock engages, unfold board and you are ready to iron!
Product
Specifications
- Data: Included: (1) Fold-out ironing board, cover and mounting hardware - 3-Piece zinc plated heavy-duty full-extension ball-bearing slide system - 14.25" - 21" Adjustable width - Surface Area: 11.8" W X 37.7" L - Fold away for easy storage - Counter top can not exceed a overhang/overlay of more than 1.25" - Designed for a Vanity Base 18 Cabinet - Optional replacement cover available (RAS-VIB COVER-52 sold separately) - Construction: Heavy-Duty Metal frame - Limited Lifetime Warranty
- Length: 19.88"
- Width: 14.25"
- Height: 4"
- Material: Steel
- Min. Cabinet Opening Frameless: 14.25"W X 20"D X 4"H
- Min. Cabinet Opening Faceframe: 14.25"W X 20"D X 4"H Installation instructions
