Description
The SBM Series Standard Bottom-Mount Waste and Recycling Unit features medium-duty ball-bearing precision slides. Specialized wire framing holds bins securely in place and includes a handle for easy pull-out. Preassembled for faster installation, the bottom-mount slides also provide stability. The unit installs easily with just four screws and can be door mounted using the optional Door Bracket Kit.
- • KV heavy-duty ball-bearing precision slides
- • Updated wire management system holds bins securely in place
- • Pre-assembled units with heavy-duty mounting straps install easily
- • with only 4 screws
- • Clip-on handle comes with all single, double and four bin units. Integrated
- • handle on all triple bin units
- • Optional Door-Mount Bracket
- • Optional lids available
| Part Number | Opening Width (O) | Interior Width (W) | Interior Height (H)* | Interior Depth (D) | Front Clearance (F) | Back Clearance (B) |
|---|---|---|---|---|---|---|

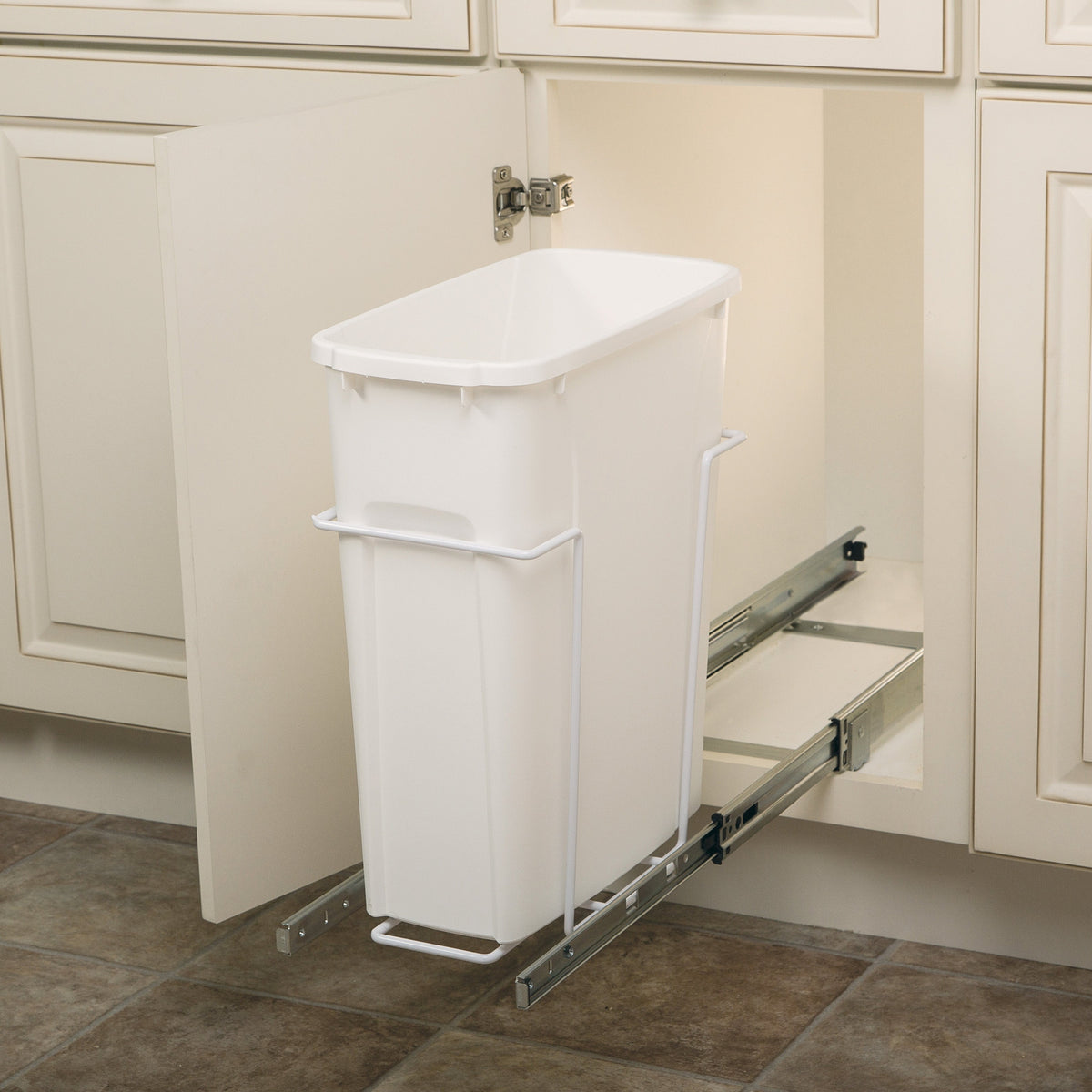

| SBM9-1-20WH | 9″ [229 mm] |
9″ [229 mm] |
17-13/16″ [452 mm] |
20-1/2″ [521 mm] |
1/4″ [6 mm] |
1/8″ [3 mm] |

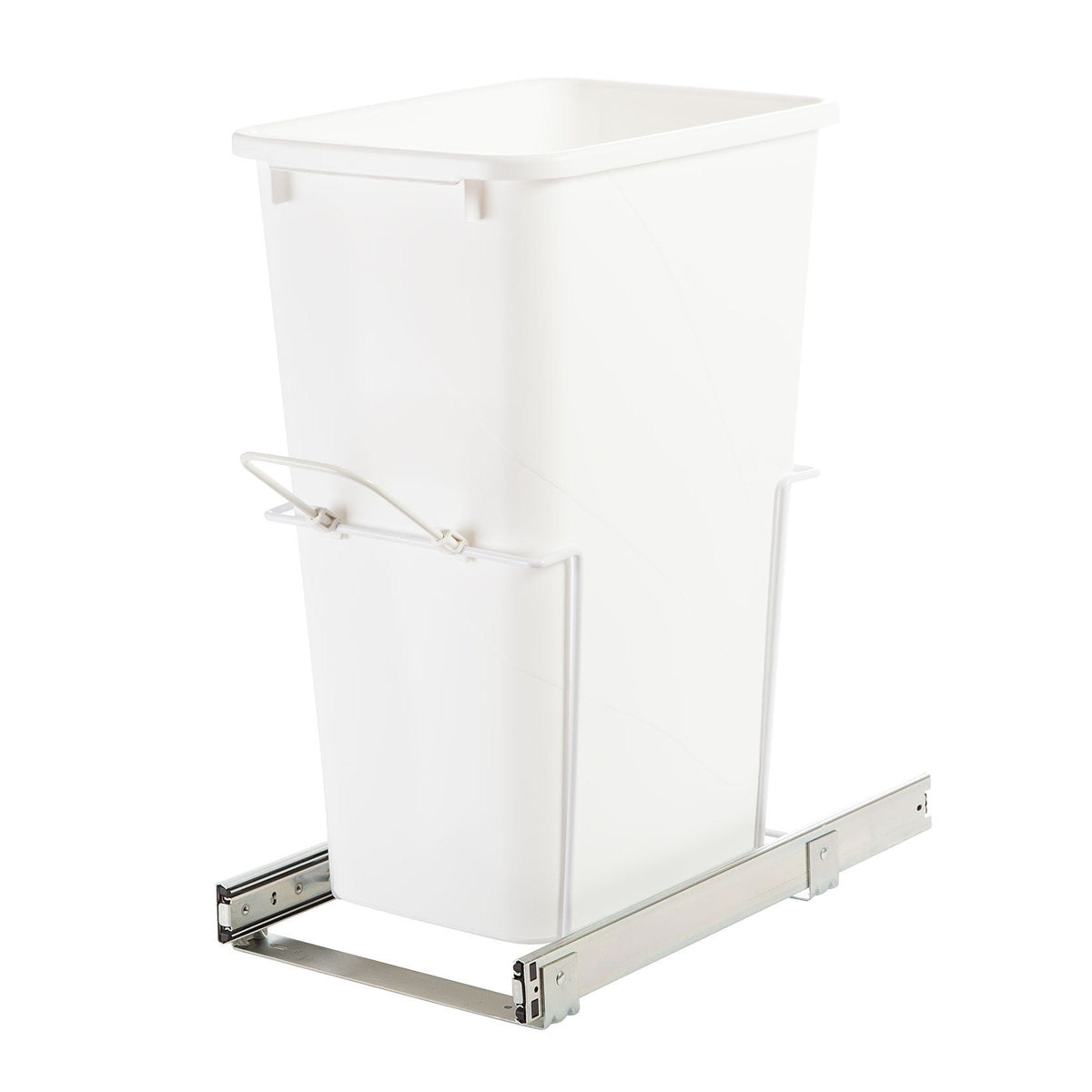

| SBM10-1-35WH | 10″ [254 mm] |
10″ [254 mm] |
19-5/16″ [491 mm] |
20-1/2″ [521 mm] |
1/4″ [6 mm] |
1/8″ [3 mm] |

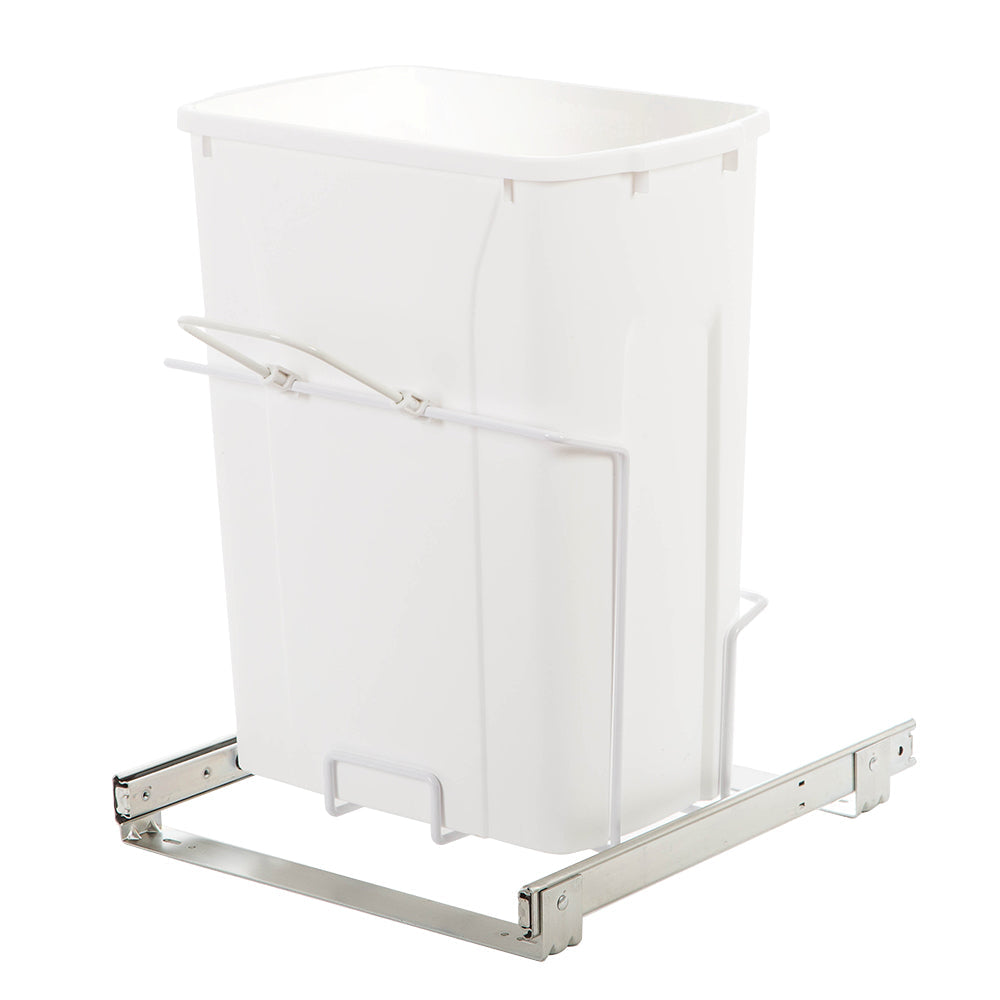

| SBM15-1-35WH | 15″ [381 mm] |
15″ [381 mm] |
19-5/16″ [491 mm] |
16-3/8″ [416 mm] |
1/4″ [6 mm] |
1/8″ [3 mm] |
| SBM12-1-50WH | 12″ [305 mm] |
12″ [305 mm] |
23-3/8″ [594 mm] |
20-1/2″ [521 mm] |
1/4″ [6 mm] |
1/8″ [3 mm] |

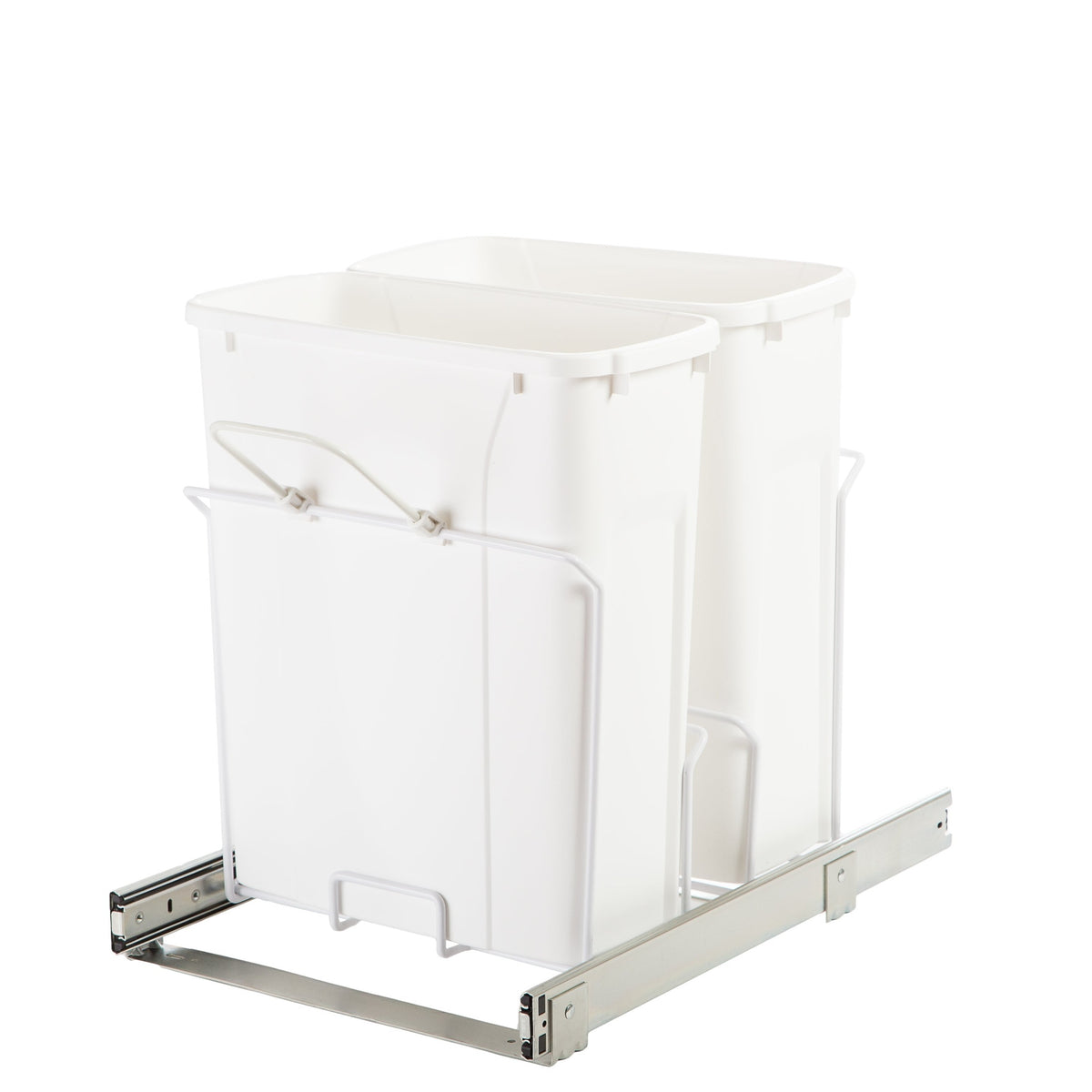

| SBM15-2-20WH | 15″ [381 mm] |
15″ [381 mm] |
17-13/16″ [452 mm] |
20-3/8″ [518 mm] |
1/4″ [6 mm] |
1/8″ [3 mm] |

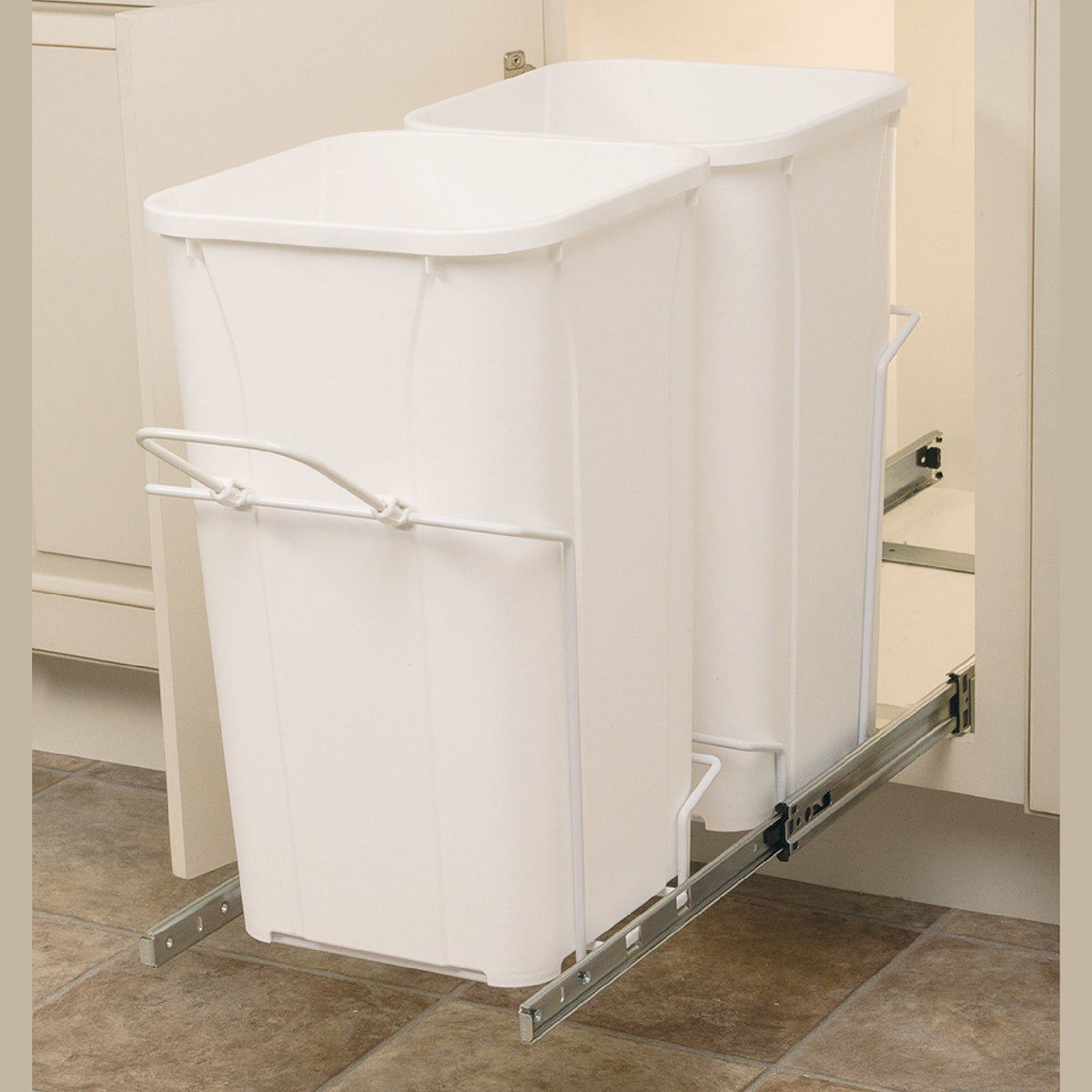

| SBM12-2-27WH | 12″ [305 mm] |
12″ [305 mm] |
19″ [482 mm] |
22-9/16″ [573 mm] |
1/4″ [6 mm] |
1/8″ [3 mm] |

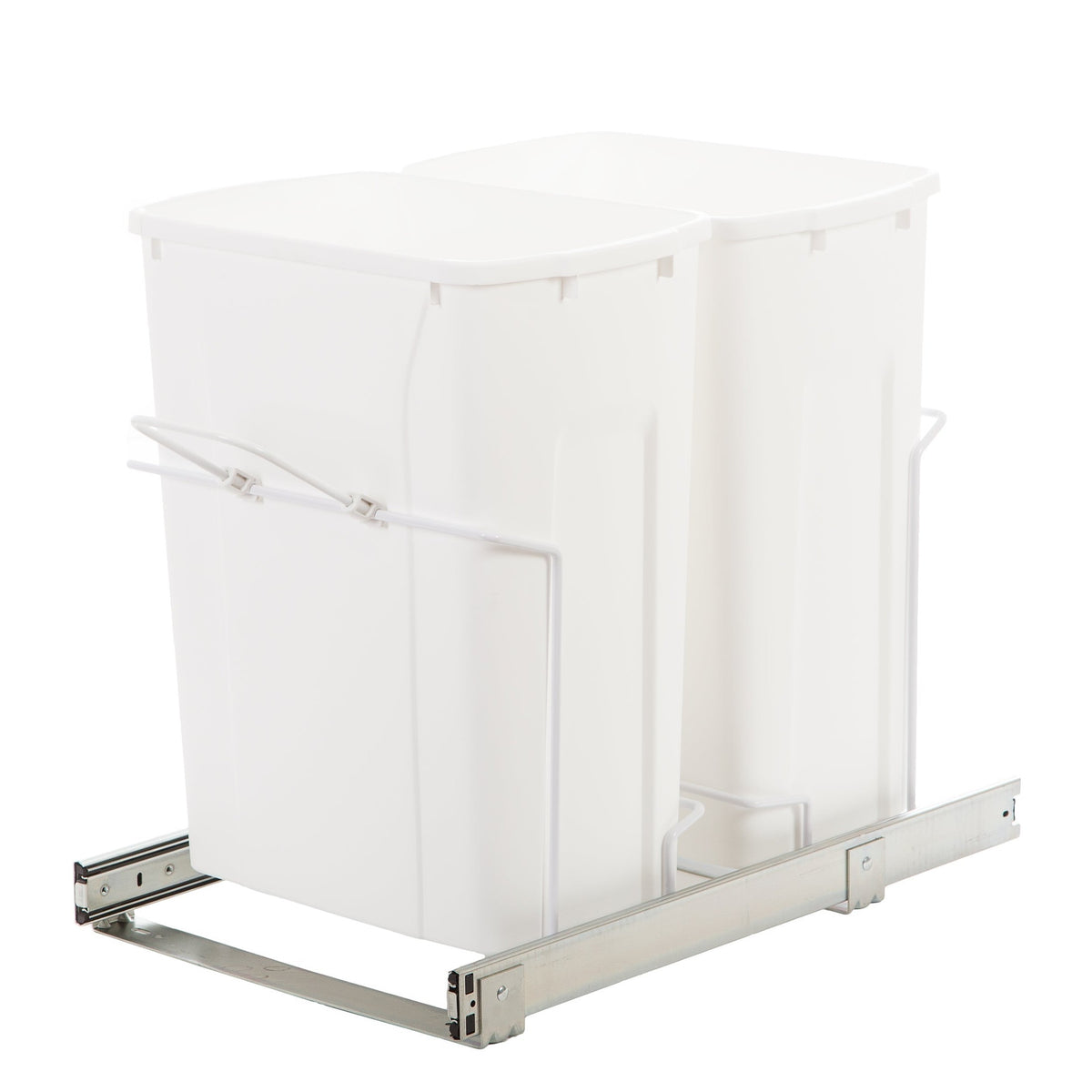

| SBM15-2-35WH | 15″ [381 mm] |
15″ [381 mm] |
19-5/16″ [491 mm] |
22-3/8″ [568 mm] |
1/4″ [6 mm] |
1/8″ [3 mm] |
