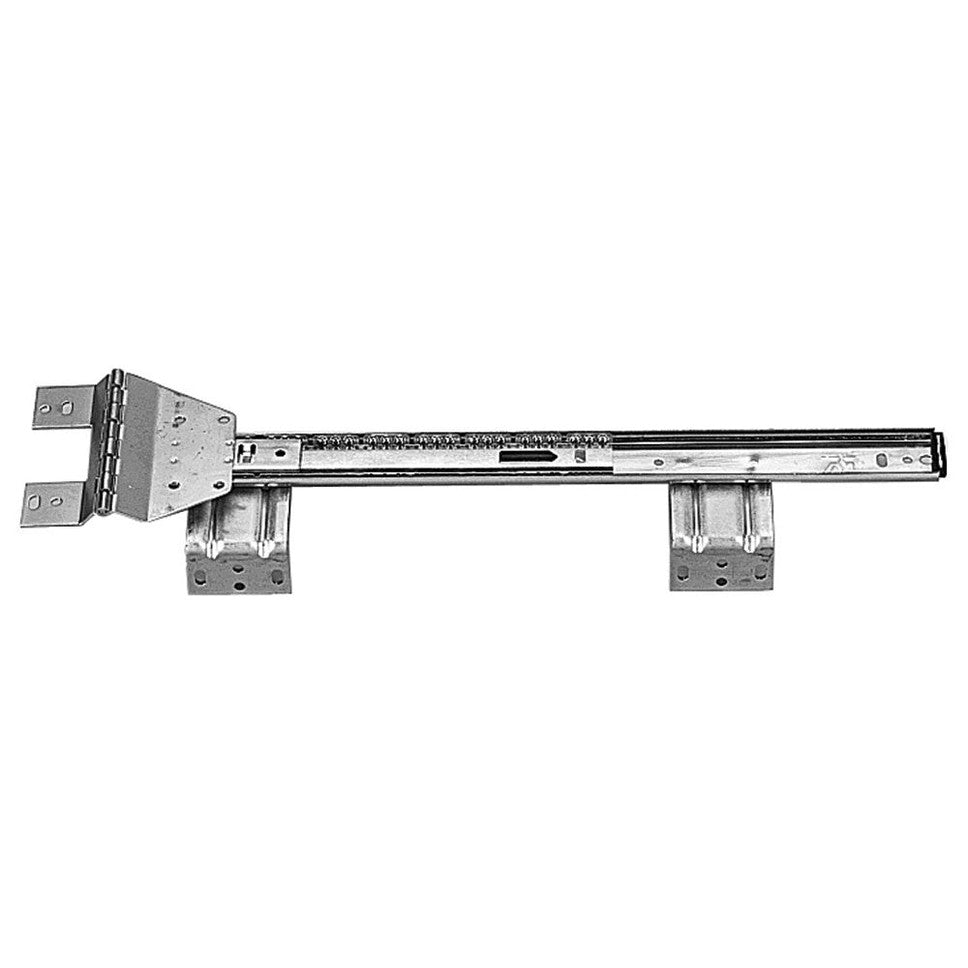

8050 Up-and-Under Hinged Door Slide
Roll over image to zoom in Click on image to zoom
8050 Up-and-Under Hinged Door Slide

8050 Up-and-Under Hinged Door Slide, Pair

KV / Knape & VogtSKU: 8050PEZ 12
Primary Size: 12"
Price:
$87.90

Description

The 8050 hinged door slide guides a cabinet door up and underneath the cabinet top. Ball-bearing movement, a non-marring roller and a permanently staked hinge pin support controlled operation. A pair supports doors up to 20 lb, with a maximum door size of 48" wide by 24" high. The slides mount to the inside cabinet end panels. Follow the installation instructions for door thickness, top gap and cabinet clearance.

  • • Up-and-under hinged door movement
  • • Supports doors up to 20 lb per pair
  • • Maximum door: 48" W × 24" H
  • • Minimum door thickness: 3/4"
  • • Minimum top gap: 3/16"
  • • Requires 2-5/8" cabinet top space
